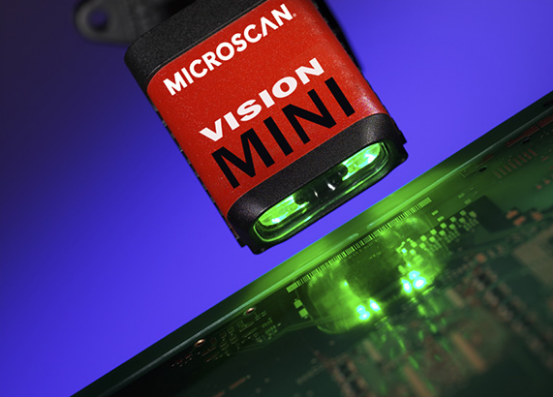

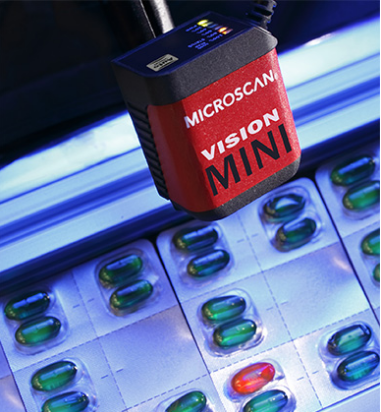

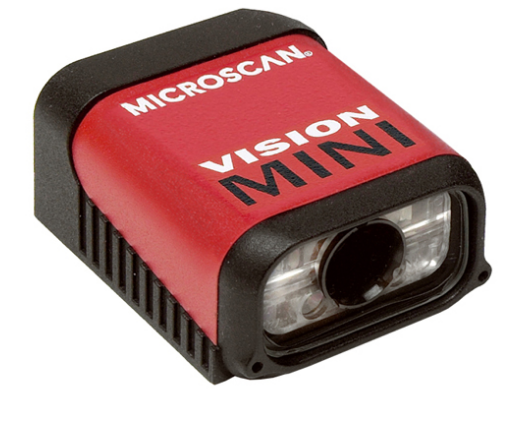

邁思肯Microscan Vision MINI迷你智能相機
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • 視覺迷你智能相機旨在為嵌入式識別和檢測應用提供可靠的視覺性能。作為輕巧緊湊的完全集成化的視覺系統，VisionMini極為緊湊的尺寸和廣角光學特征為開展近距離的機器視覺工作提供了優良性能。

    OEM設計工程師可憑借視覺迷你在單個緊湊型的視覺方案中快速實施穩健檢測、色彩匹配、讀碼和OCR等工作。

    造型緊湊，重量極輕：視覺迷你輕巧緊湊的完全集成化的智能相機。憑借其緊湊外觀可在狹小空間內活動自如.經久耐用的鎂合金外殼，重量不足2盎司.(57克)。

    功能強大：它作為一款強大的工具套件可憑借視覺技術解決各類自動化難題.自動視覺軟件帶有直觀界面、詳細指導和模板庫，可輕松進行設置和應用.

    可靠性及長壽命：視覺迷你性能極佳且可靠，可保證長時間使用。這對OEM商尤為重要，因?yàn)樗麄儾幌Ｍ诋a(chǎn)品的使用周期中出現障礙，從而可以專注新品開發而非故障問題.


    Vision MINI 智能相機: 功能

    • 讀取一維和二維碼

    • 光學字符識別（OCR）

    • 動態零件定位

    • 裝配驗證

    • 尺寸測量


    		另加 Visionscape 選項:

    • 圖像轉換和縮放

    • 精密校準

    • 自定義視覺工具（腳本）

    • 程序控制功能

    • 50+機器視覺工具


    邁思肯Microscan Vision MINI迷你智能相機配件表

    Part NumberDescription
    98-000215-01Demo Kit, AutoVISION - supports Vision MINI and Vision HAWK
    FIS-0210-0001GMS-Connect 210, Connectivity Box with Display
    FIS-0210-0002GMS-Connect 210, Connectivity Box
    FIS-0210-0003GMS-Connect 210, Connectivity Box with Display and Ethernet
    FIS-0210-0004GMS-Connect 210, Connectivity Box with Ethernet
    98-000013-04Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210/MS-890
    98-000013-05Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210/MS-890
    98-000013-06Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210/MS-890
    61-000127-02Cable, Quadrus MINI to MS-Connect 210, 6 ft
    FIS-0001-0035GIC-332, Connects MINI to IB-131
    99-000018-01IB-131, Interface Box
    98-000039-02Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
    61-300026-03Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft
    61-100029-03Cable, IB-131 Daisy Chain, 1 ft
    20-500013-01DeviceNet Protocol Box
    61-000011-02Cable, MS-820 to IB-131 (also use for MS-3, 4, 9, 710 and MINI Extension)
    98-000098-01Kit, Quadrus MINI Diffuser
    Power Supply
    97-000012-02100-240 VAC, +24VDC, TRK 3Pin, USA/Euro Plug
    Mounting and Connectors
    98-000048-01Mounting Arm/Adapter Kit, 4 inch, Vision MINI
    98-000054-01Kit, Mounting Stand Base Plate, Vision MINI
    98-000053-01Extension Kit, 4 inch, Vision MINI
    98-000053-02Extension Kit, 3 inch, Vision MINI
    98-000060-01Kit, Bracket, Side Mount, Vision MINI
    98-000059-01Kit, Bracket, Angle Mount, Vision MINI
    98-000057-01Kit, Bracket, Through Hole Mount, Vision MINI
    98-000088-01Kit, Right Angle Mirror
    20-610024-01Trigger Connector for IB-131, 4-pin Plug
    20-610020-01Power Connector for IB-131, 3-pin Socket
    99-000055-01Accessory, Bracket, DOAL 50 to MINI
    99-000057-01Accessory, Bracket, DOAL 75 to MINI
    99-000059-01Accessory, Bracket, DOAL 100 to MINI
    99-000053-01Accessory, Bracket,R-60/70 to MINI
    99-000054-01Accessory, Bracket,R-100 to MINI
    Package Detector/Sensor
    99-000017-01Photo Sensor, Visible, NPN, Dark On
    99-000017-02Photo Sensor, Visible, NPN, Light On
    99-000019-01Photo Sensor, Visible, NPN, Light On, 5VDC


    邁思肯Microscan Vision MINI迷你智能相機型號表

    Part NumberDescription
    Vision MINI Smart Camera - SXGA 1.3 MP
    GMV-6300-2110GVision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION
    GMV-6300-2112GVision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape
    GMV-6300-2210GVision MINI Smart Camera, USB, HD, SXGA (1.3MP), Built in Light, AutoVISION
    GMV-6300-2212GVision MINI Smart Camera USB, HD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape
    GMV-6300-2114GVision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION + Verification/OCV
    GMV-6300-2116GVision MINI Smart Camera, USB, STD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape + Verification/OCV
    GMV-6300-2214GVision MINI Smart Camera, USB, HD, SXGA (1.3MP), Built in Light, AutoVISION + Verification/OCV
    GMV-6300-2216GVision MINI Smart Camera USB, HD, SXGA (1.3MP), Built in Light, AutoVISION + Visionscape + Verification/OCV
    Vision MINI Smart Camera - QXGA Color
    GMV-6300-2172GVision MINI Smart Camera, USB, STD, QXGA (Color), Built in Light, with Visionscape
    GMV-6300-2272GVision MINI Smart Camera, USB, HD, QXGA (Color), Built in Light, with Visionscape
    Vision MINI Smart Camera - WVGA Global Shutter
    GMV-6300-2100GVision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION
    GMV-6300-2102GVision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape
    GMV-6300-2200GVision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION
    GMV-6300-2202GVision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape
    GMV-6300-2104GVision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION + Verification/OCV
    GMV-6300-2106GVision MINI Smart Camera, USB, STD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape + Verification/OCV
    GMV-6300-2204GVision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION + Verification/OCV
    GMV-6300-2206GVision MINI Smart Camera, USB, HD, WVGA (High Speed), Built in Light, AutoVISION + Visionscape + Verification/OCV

    Software
    Part NumberDescription
    98-000217-01    AutoVISION to Visionscape Upgrade
    98-000217-02AutoVISION/Visionscape Verification & OCV License Upgrade
    98-000217-03AutoVISION to Visionscape Upgrade with Verification & OCV License


    邁思肯Microscan Vision MINI迷你智能相機應用


    電子行業，汽車零件，模具行業，制造行業等
